Tuesday, June 17, 2008

Hatching on curved elements.

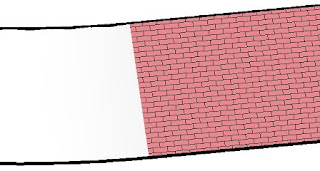

Today I came across directly how bad Revit 2008 is at putting hatch surfaces on curved faces. (left image). In fact some times it doesn't at the hatch at all.


It is one the of items that has been fixed Revit 2009 (left), but it’s not exactly perfect (you can see from the image), buts it’s not really possible to rotate the hatch.

The two pictures show a model hatch.
